產品規格
| Product Characteristics | |||
|---|---|---|---|

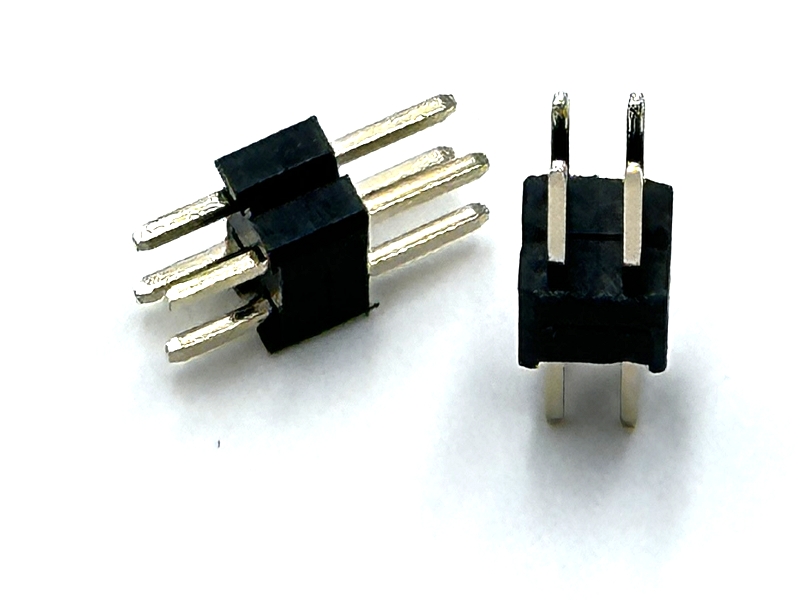

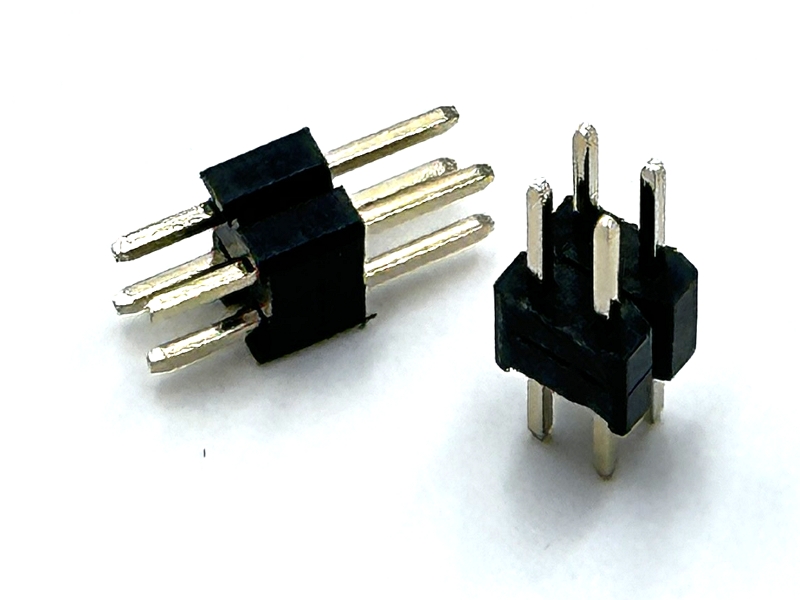

| Product Overview | 2.00mm Double Row Dual Base Pin Header | ||
| Orientation | Vertical | ||
| Physical Characteristics | |||
|---|---|---|---|
| Insulator Material | Thermoplastic, UL94 V-0 | ||
| Contact Material | Brass | ||
| Contact | Gold Plated over nickel | ||
| Pitch | 2.00mm | ||
| Circuits | 2x1 ~40Pin | ||
| Electrical Characteristic | |||
|---|---|---|---|
| Current Rating | 2A | ||
| Dielectric withstanding Voltage | 500V AC for 1 min | ||
| Insulator Resistance | 1000MΩ min. | ||
| Insulator Resistance | 20mΩ max. | ||
| Operating Temperature | -45° ~ 105° | ||
| Environment Characteristic | |||
|---|---|---|---|
| Safety/Quality Approvals | ROHS | ||
| Others | |||
|---|---|---|---|
| Services | High-quality Manufacturing / OEM | ||
